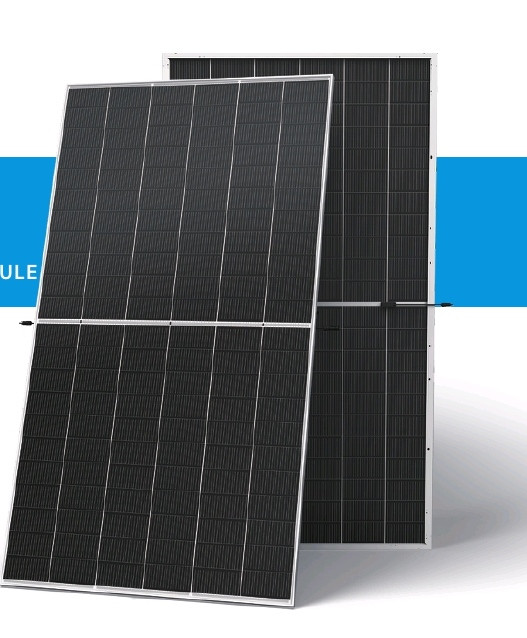

پنل خورشیدی مونوکریستال دوطرفه تریناسولار 715 وات

Peak Power Watts-Pmax

715W

Power Selection

0~+5

Maximum Power Voltage - Vmpp

41.1 V

Maximum Power Current-Impp

17.4A

Open Circuit Voltage - Voc

49.2 V

Short Circuit Current - Isc

18.44A

Module Efficiency

23%

Peak Power Watts-Pmax/Backside Power Gain 5%

751W

Peak Power Watts-Pmax/Backside Power Gain 10%

787W

Maximum Power Voltage -Vmp/Backside Power Gain 5%

41.1 V

Maximum Power Voltage -Vmpp/Backside Power Gain 10%

41.1 V

Maximum Power Current -Impp/Backside Power Gain5%

18.27A

Maximum Power Current -Impp/Backside Power Gain 10%

19.14A

Open Circuit Voltage -Voc/Backside Power Gain 5%

49.2 V

Open Circuit Voltage -Voc/Backside Power Gain 10%

49.2 V

Short Circuit Current -Isc/Backside Power Gain 5%

19.36A

Short Circuit Current -Isc/Backside Power Gain 10%

20.28A

Nominal Operating Cell Temperature

43°c(+-2°c)

Temperature coefficient of Pmax

- 0.29% /°c

Temperature Coefficient of Voc

- 0.24% / °c

Temperature Coefficient of Isc

0.04% /°c

Operating Temperature Range

- 40 ~ 80°c+

Nomber of cells

132 cells

Solar Cell

N-type i-TOPCon Monocrystalline

Module Dimensions

2384*1303*33 mm

Weight

38.3 kg

j-Box

IP68

Packing

Module Per Box 33 Pieces

Maximum System Voltage

1500 VDC

Max Series Fuse Rating

35A
