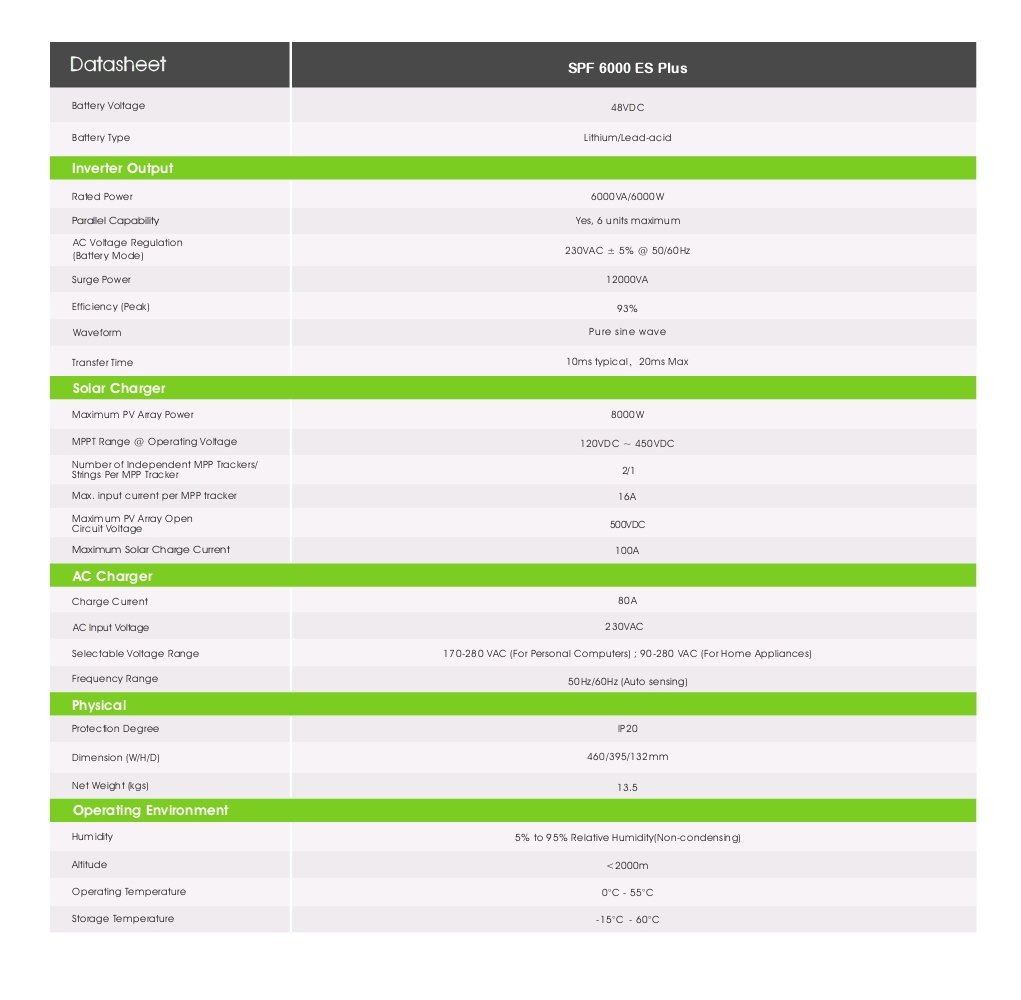

Rated Power: 6000VA/6000W
AC Voltage Regulation: 230VAC+- 5% @ 50/60Hz
Surge Power: 12000VA
Efficiency: 93%
Parallel Capability : Yes , 6unit maximum
Waveform : Pure sine wave
Transfer Time : 10ms typical, 20ms Max
Battery Voltage : 48VDC
Battery Type : Lithium /Lead-acid
Maximum PV Array Power : 8000W
MPPT Range @ Operating Voltage : 120VDC ~ 4500VDC
Number of Independent MPP Trackers / Strings Per MPP Tracker : 2/1
Max.input current per MPP Tracker : 16A
Maximum PV Array Open Circuit Voltage : 500VDC
Maximum Solar Charge Current : 100A
AC Charge Current : 80A
AC Input Voltage : 230VAC
Selectable Voltage Range : (170~280 VAC) For Personal Camputers /(90-280VAC) For Home App;iances
AC Input Frequency Range : 50/60Hz
Protection Degree : IP20
Dimension W/H/D : 460/395/132 mm
Weight : 13.5 kg
Humidity : 95%
Operating Temperature Range : 0 - 55 C
Storage Temperature : -15~ 60 C
Altitude : <2000m
