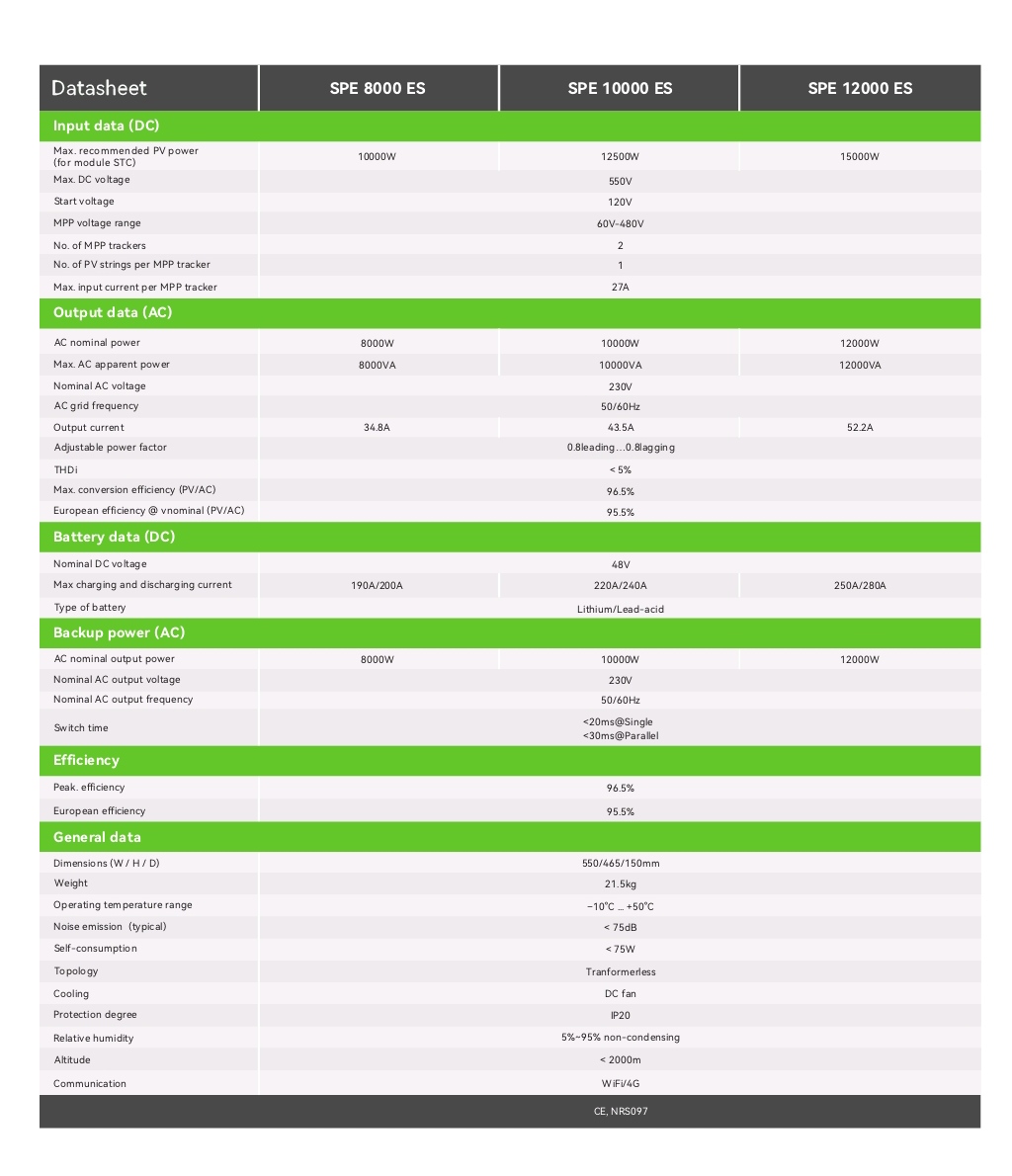

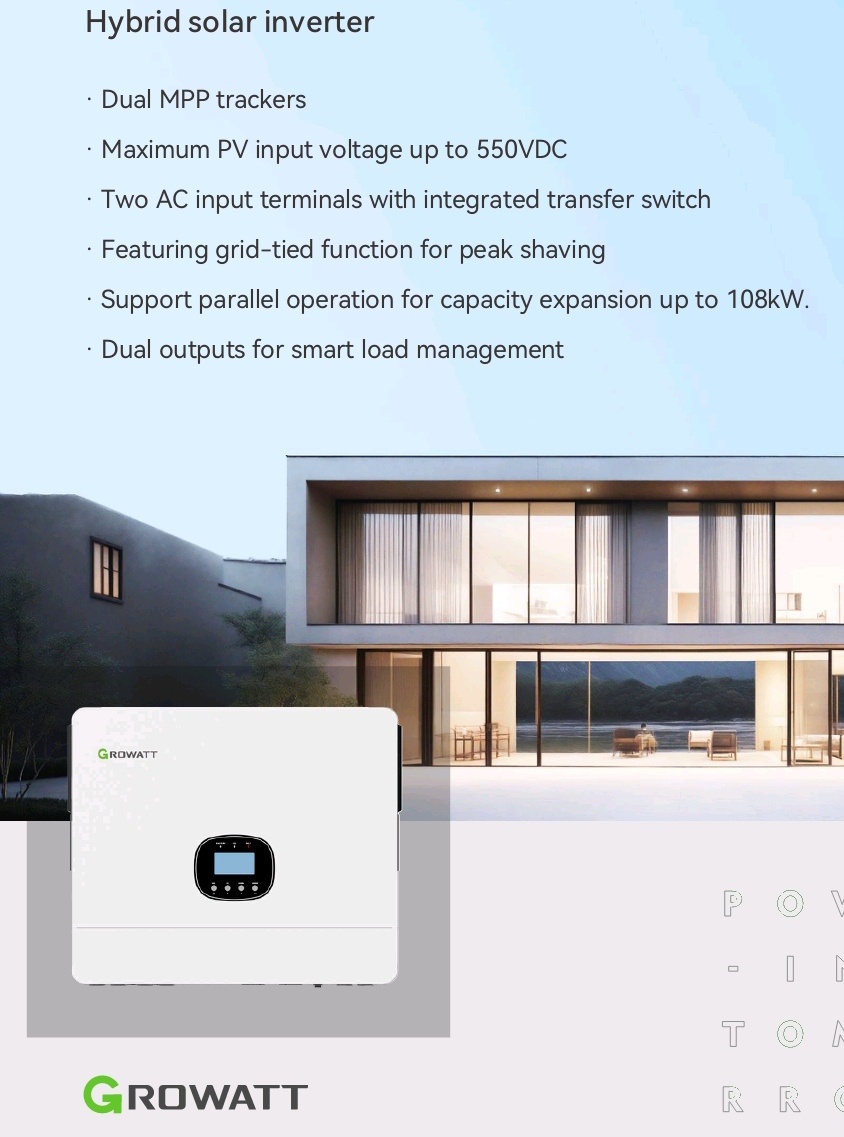

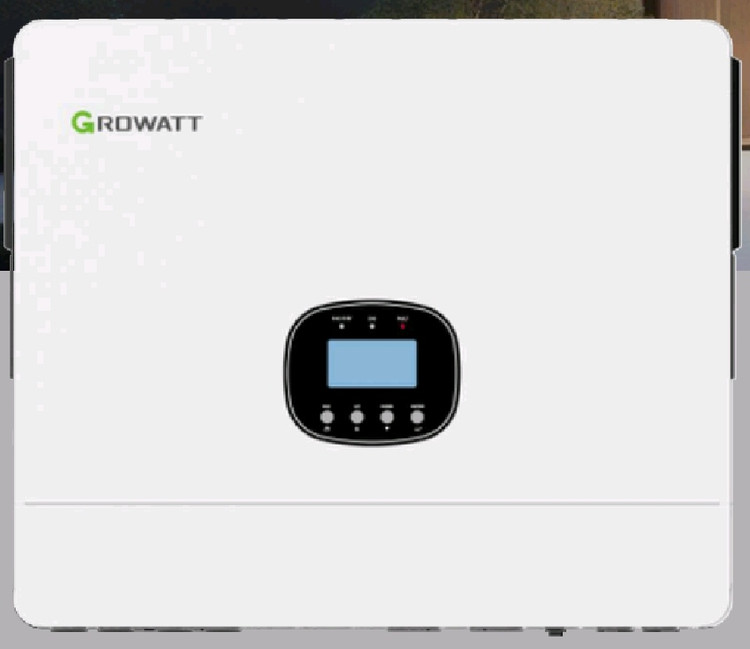

اینورتر هیبریدی 12KW گرووات مدل SPE 12000ES

AC Nominal Power

12000w

Max.AC apparent power

12000VA

Nominal AC Voltage

230v

AC Frequency

50/60Hz

Output Current

52.2A

THDi

<5%

Peak. Efficiency

96.5%

European Efficiency

95.5%

Battery Voltage

48VC

Max.Charge and discharge current

250A/280A

Battery Type

Lithium / Lead-acead

Maximum PV Array Power

15000W

Max. DC Voltage

550 VDC

Start Voltage

120 VDC

MPPT Voltage Range

60~480 VDC

No.of MPPT

2

No.of PV Strings per MPPT

1

Max.input current per MPPT

27A

Dimension W/H/D

550/465/150 mm

Weight

21.5 kg

Operating Temperature Range

-10~ +50c

Protection Degree

IP20

Humidity

95%

Altitude

<2000 m

Communication

WiFi/4G
