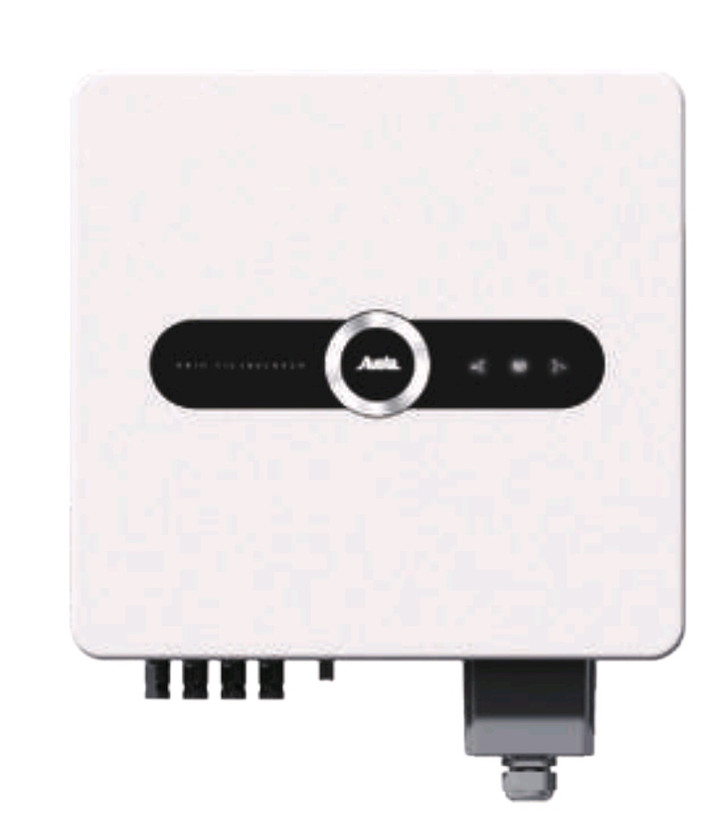

اینورتر آنگرید تک فاز برند Austa 3kw مدل AU3K1P

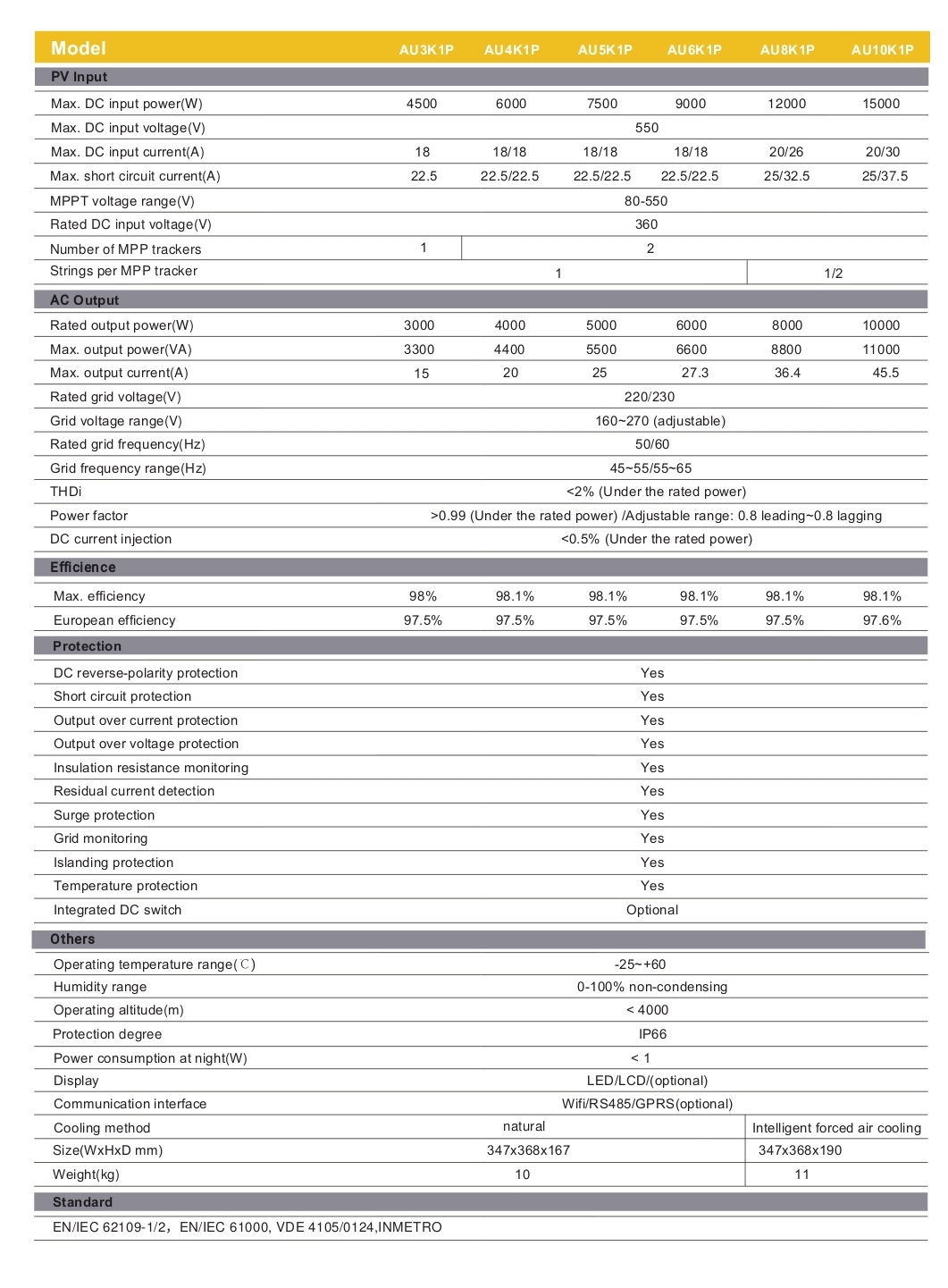

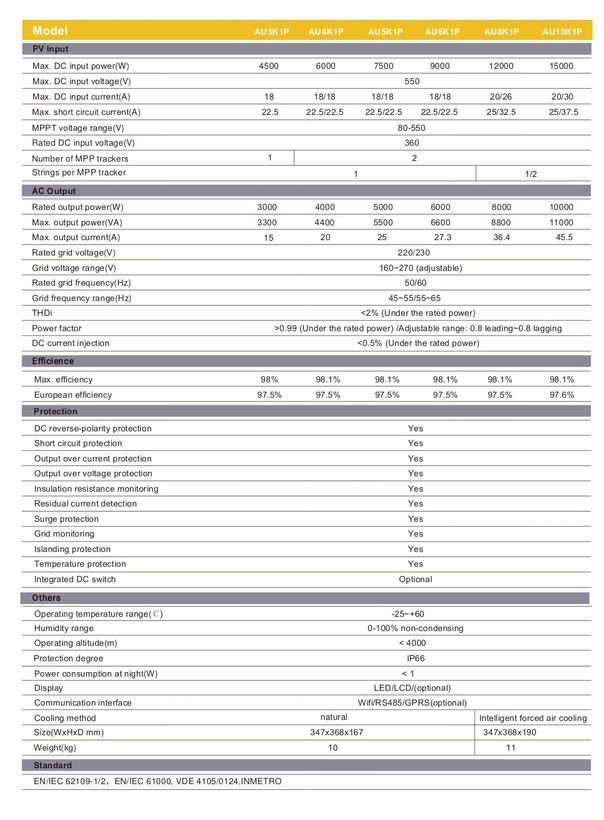

Rated output power

3000w

Max. output power

3300VA

Max. output current

15A

Rated grid voltage

220/230 V

Grid voltage range

160~270 (adjustable)V

Rated grid frequency

50/60HZ

Grid frequency range

45~55/55~65 HZ

Power factor

>0.99 (Under the rated power) /Adjustable range: 0.8 leading~0.8 lagging

DC current injection

<0.5% (Under the rated power)

Max. DC input power PV

4500W

Max. DC input voltage PV

550V

Max. DC input current PV

18A

Max. short circuit current PV

22.5A

MPPT voltage range

80-550 V

Rated DC input voltage PV

360V

Number of MPP trackers

1

Strings per MPP tracker

1

Max. efficiency

98%

European efficiency

97.5%

DC reverse-polarity protection

YES

Short circuit protection

YES

Output over voltage protection

YES

Output over current protection

YES

Grid monitoring

YES

Islanding protection

YES

Residual current detection

YES

Temperature protection

YES

Integrated DC switch

Optional

Operating temperature range

-25~+60

Humidity range

0-100% non-condensing

Protection degree

IP66

Operating altitude

<4000m

Communication interface

Wifi/RS485/GPRS(optional)

Power consumption at night

< 1w

Display

LED/LCD/(optional)

Cooling method

natural

Size(WxHxDmm)

347x368x167

Weight

10kg

Standard

EN/IEC 62109-1/2，EN/IEC 61000, VDE 4105/0124,INMETRO

Insulation resistance monitoring

YES

Surge protection

YES
