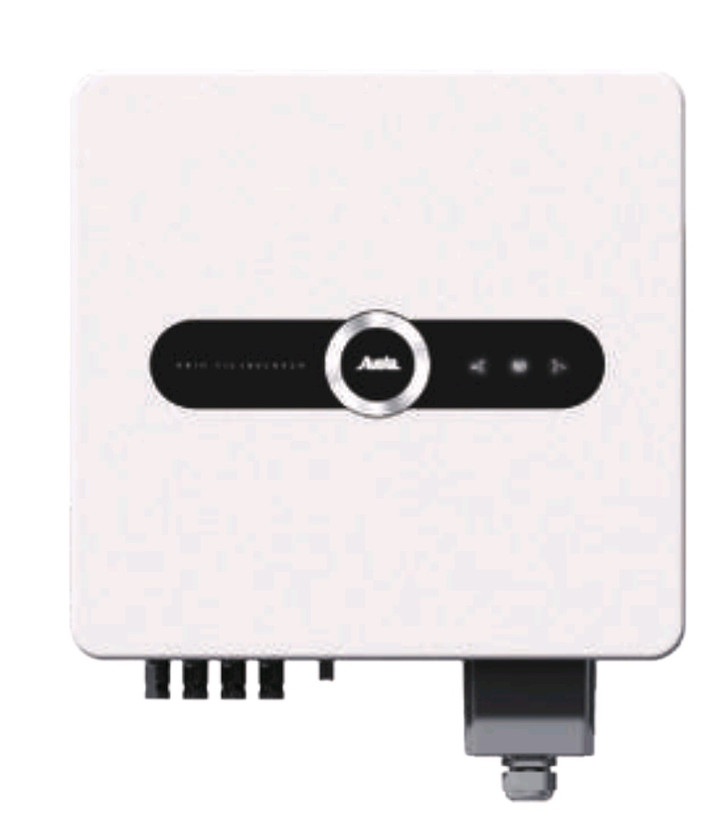

اینورتر آنگرید تک فاز برند Austa 5kw مدل AU5K1P

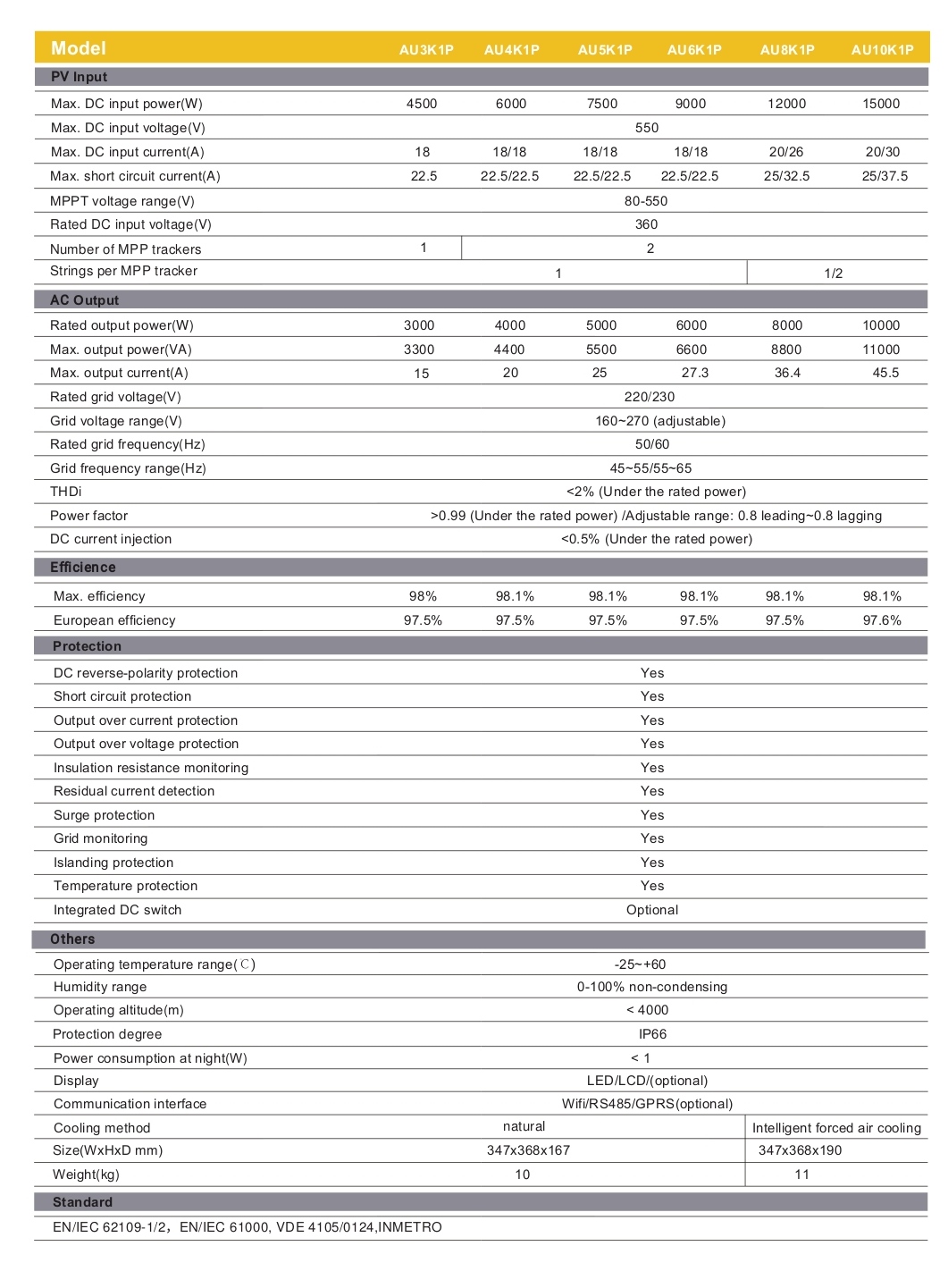

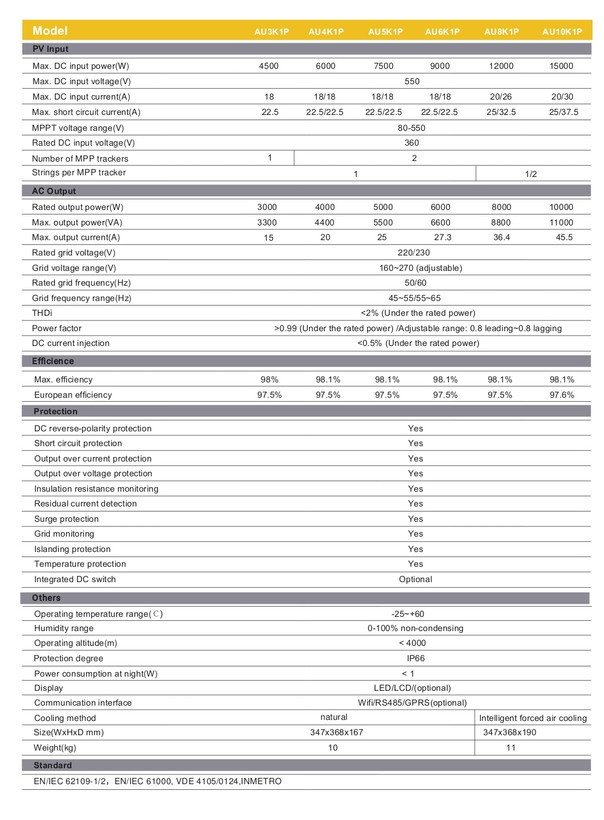

Rated output power

5000w

Max. output power

5500VA

Max. output current

25A

Rated grid voltage

220/230V

Grid voltage range

160~270 (adjustable)

Rated grid frequency

50/60HZ

Grid frequency range

45~55/55~65 HZ

THDi

<2% (Under the rated power)

Power factor

>0.99 (Under the rated power) /Adjustable range: 0.8 leading~0.8 lagging

DC current injection

<0.5% (Under the rated power)

Max. DC input power PV

7500w

Max. DC input voltage PV

5500V

Max. DC input current PV

18/18 A

Max. short circuit current PV

22.5/22.5 A

MPPT voltage range

80-550 V

Rated DC input voltage

360V

Number of MPP trackers

2

Strings per MPP tracker

1

Max. efficiency

98.1%

European Efficiency

97.5%

DC reverse-polarity protection

YES

Short circuit protection

YES

Output over current protection

YES

Insulation resistance monitoring

YES

Residual current detection

YES

Output over voltage protection

YES

Surge protection

YES

Grid monitoring

YES

Islanding protection

YES

Temperature protection

YES

Integrated DC switch

Optional

Operating Temperature Range

-25~+60 C

Humidity range

0-100% non-condensing

Operating altitude

<4000m

Protection degree

IP66

Display

LED/LCD/(optional)

Power consumption at night

< 1W

Cooling method

natural

Size(WxHxDmm)

347x368x167

Standard

EN/IEC 62109-1/2，EN/IEC 61000, VDE 4105/0124,INMETRO

Weight

10kg
