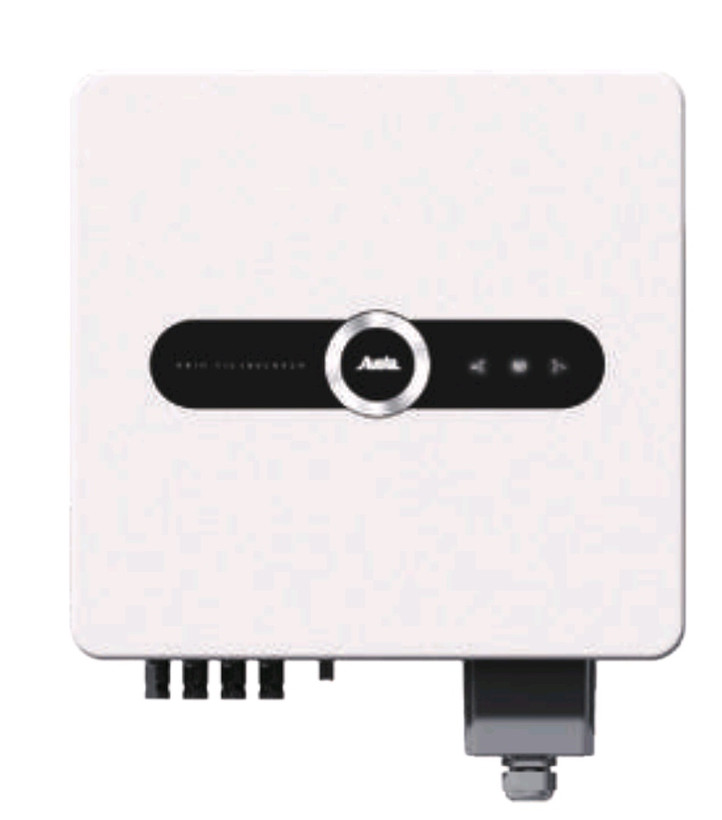

اینورتر آنگرید تک فاز برند Austa 10kw مدل AU10K1P

Rated output power

10kw

Max. output power

11 KVA

Max. output current

45.5 A

Rated grid voltage

220/230 V

Grid voltage range

160~270 (adjustable)

Grid frequency range

45~55/55~65 HZ

Rated grid frequency

50/60 HZ

THDi

<2% (Under the rated power)

Power factor

>0.99 (Under the rated power) /Adjustable range: 0.8 leading~0.8 lagging

DC current injection

<0.5% (Under the rated power)

Max. DC input power PV

15 KW

Max. DC input voltage PV

550 V

Max. DC input current PV

20/30 A

Max. short circuit current PV

25/37.5 A

MPPT voltage range

80-550 V

Rated DC input voltage

360 V

Number of MPP trackers

2

Strings per MPP tracker

1/2

DC reverse-polarity protection

YES

Short circuit protection

YES

Output over current protection

YES

Islanding protection

YES

Insulation resistance monitoring

YES

Residual current detection

YES

Output over voltage protection

YES

Surge protection

YES

Grid monitoring

YES

Temperature protection

YES

Integrated DC switch

Optional

Operating Temperature Range

-25~+60 C

Humidity range

0-100% non-condensing

Operating altitude

<4000m

Protection degree

IP66

Power consumption at night

< 1W

Max. efficiency

98.1%

European efficiency

97.6%

Display

LED/LCD/(optional)

Communication interface

Wifi/RS485/GPRS(optional)

Cooling method

Intelligent forced air cooling

Size(WxHxDmm)

347x368x190

Weight

11 kg
