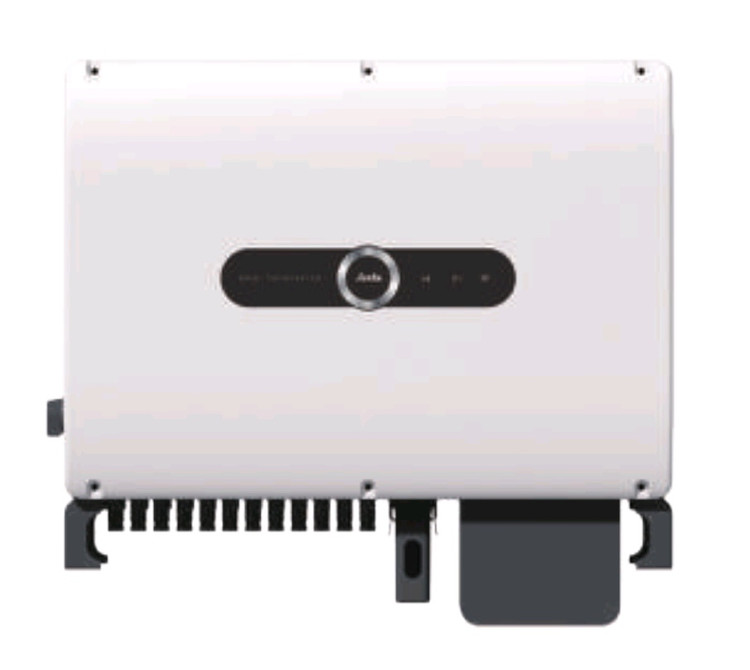

اینورتر آنگرید 3 فاز برند Austa 50kw مدل AU50K3P

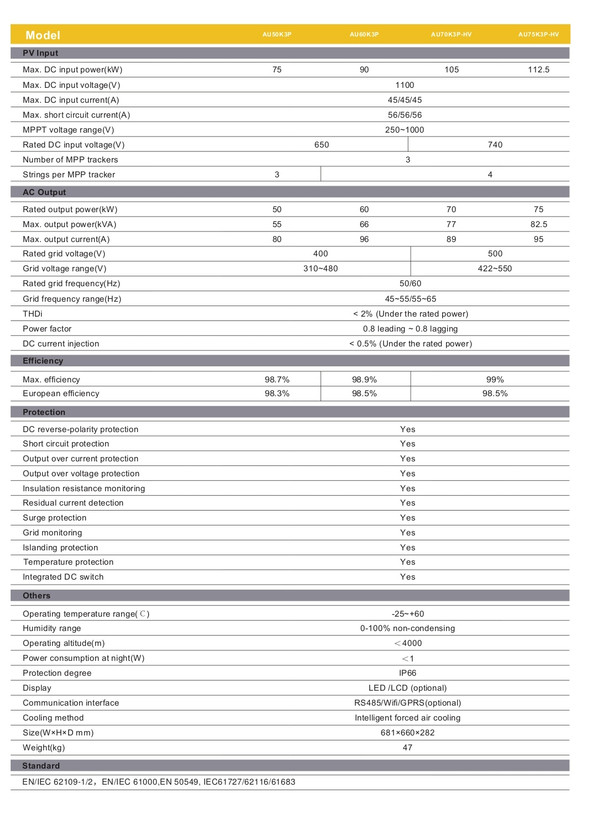

Rated output power

50 KW

Max. output power

55 KVA

Max. output current

80 A

Rated grid voltage

400 V

Grid voltage range

310~480 V

Rated grid frequency

50/60 HZ

Grid frequency range

45~55/55~65 HZ

THDi

< 2% (Under the rated power)

Power factor

0.8 leading ~ 0.8 lagging

DC current injection

< 0.5% (Under the rated power)

Max. DC input power PV

75 KW

Max. DC input voltage PV

1100 V

Max. DC input current PV

45/45/45 A

Max. short circuit current PV

56/56/56 A

MPPT Voltage Range

250~1000 V

Rated DC input voltage PV

650 V

Number of MPP trackers

3

Strings per MPP tracker

3

Max. efficiency

98.7%

European Efficiency

98.3%

DC reverse-polarity protection

YES

Short circuit protection

YES

Output over current protection

YES

Output over voltage protection

YES

Islanding protection

YES

Insulation resistance monitoring

YES

Residual current detection

YES

Surge protection

YES

Grid monitoring

YES

Integrated DC switch

YES

Operating Temperature Range

-25~+60 C

Humidity range

0-100% non-condensing

Operating altitude

＜4000m

Power consumption at night

＜1W

Protection degree

IP66

Display

LED /LCD (optional)

Communication interface

RS485/Wifi/GPRS(optional)

Cooling method

Intelligent forced air cooling

Temperature protection

YES

Size(WxHxDmm)

681×660×282

Weight

47 kg

Standard

EN/IEC 62109-1/2，EN/IEC 61000,EN 50549, IEC61727/62116/61683
